Regions Covered
✔ Brunei Darussalam
To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): | Clock number (no standardised format) |
| Pre/post roll: | Yes |
| HD/SD: | HD or SD (4:3) |
| Audio: | -10dBFS |
| Clearance: | Managed locally |

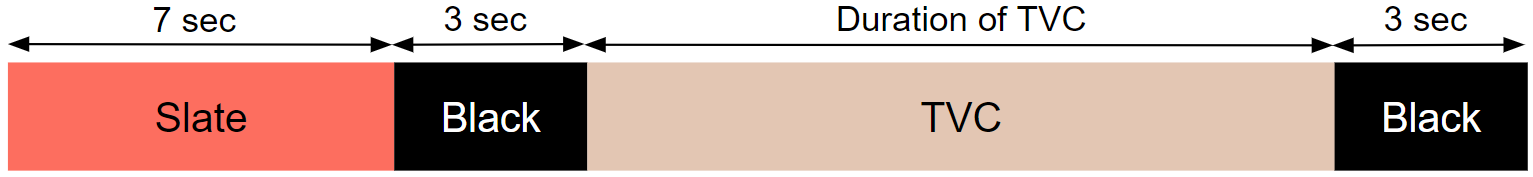

Content Layout
Countdown Clock
A clock is mandatory for this region, it should display the following information:
Clock must be mute
If there is any audio it will fail QC
HD File Specification
| Preferred | ||
| Format | XDCAM 1080/50 | Apple ProRes 422HQ 1080/50 |
| Container | MOV or MXF | MOV |
| Video Codec | XDCAM 422 | Apple Quicktime ProRes 422 (HQ) |
| GOP | Long GOP | - |
| Profile | MPEG-2 422P@HL | HQ |
| Frame Size | 1920x1080 | 1920x1080 |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio | 16:9 | 16:9 |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) |
| Video Bit Rate | 50Mb/s CBR | - |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | Integer (Big/Little Endian) PCM | Integer (Little Endian) PCM |
| Audio Bit Depth | 24bit | 24bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |

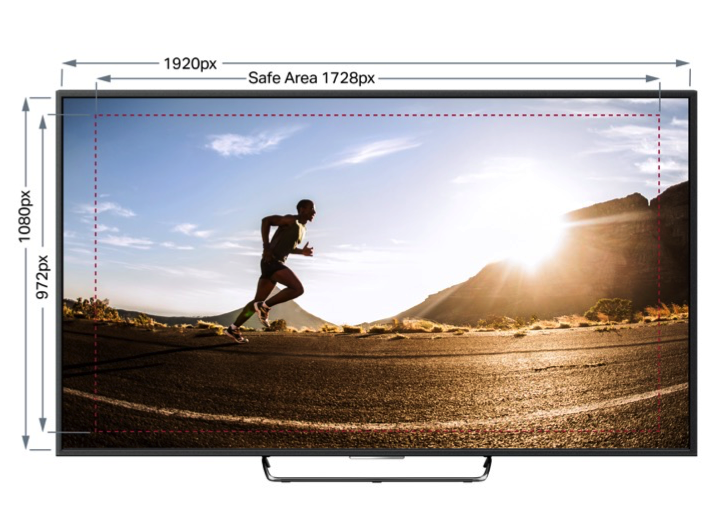

HD Title Safety
16:9 as per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
SD File Specification
| Preferred | Accepted | ||
| Format | Apple ProRes 422HQ 625/50 | MPEG-2 Program Stream 625/50 | |
| Container | MOV | MPEG-2 Program Stream | |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | MPEG-2 | |
| GOP | - | I Frame Only | |
| Profile | HQ | 422P@ML | |
| Frame Size | 720x576 | 720x576 (608 inc VBI) |
|
| Frame Rate | 25 FPS | 25 FPS | |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | |
| Aspect Ratio |
4:3 |
4:3 |
|
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) | |
| Video Bit Rate | - | 100Mb/s CBR | |
| Chroma | 4:2:2 | 4:2:2 | |
| Audio Codec | Integer (Little Endian) PCM | MPEG1 Layer-2 | |
| Audio Bit Depth | 16/24bit | 16 bit | |
| Audio Sample Rate | 48kHz | 48kHz | |
| Audio Bit Rate | Uncompressed | Uncompressed |
SD Title Safety
4:3 as per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Video Levels
All video signals should comply with ITU-R BT.709-5 (HD) or ITU-R BT.601-7 (SD) and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance correction
Video content that exhibits brighter/darker or more saturated areas than the defined level but are within the listed tolerance levels will be automatically adjusted to the defined levels.
In very rare cases this can create a small but visible alteration to the image. If you are concerned about this then we advise you to supply files that meet the specifications. We have to do this to ensure conformity with as many broadcast destinations as possible.
Audio Levels
Max Peak -10dBFS
- Permitted Maximum Level : -10dBFS / +10dBu
- Alignment Level : 1kHz@ -20dBFS
- Ballistic : PPM Type II
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
| 2 | Stereo Right |
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
In this region the clearance process is handled locally, please reach out to your Media Agency contact for more information.
Other Important Information
For XR to fulfil deliveries in this region, you must provide the delivery specifications, delivery method and the relevant contact details.
