Thailand Broadcast Specifications and Requirements

Regions Covered

✔ Thailand

To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:

Requirements at a glance

Unique identifier(s): Clock number (no standardised format)
Pre/post roll required: No
HD/SD: HD
Audio: Max Peak -10dBFS

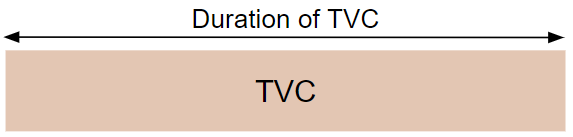

Content Layout

For this region a clock/slate is not required

TVC only general.png


File Specification

Format XDCAM 1080/50 Apple ProRes 422HQ 1080/50
Container MOV or MXF MOV
Video Codec XDCAM 422 Apple Quicktime ProRes 422 (HQ)
GOP Long GOP -
Profile MPEG-2 422P@HL HQ
Frame Size 1920x1080 1920x1080
Frame Rate 25 FPS 25 FPS
Scan Type Interlaced, Upper/Top Field First Interlaced, Upper/Top Field First
Aspect Ratio 16:9 16:9
Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)
Video Bit Rate 50Mb/s CBR -
Chroma 4:2:2 4:2:2
Audio Codec Integer (Big/Little Endian) PCM Integer (Little Endian) PCM
Audio Bit Depth 24bit 24bit
Audio Sample Rate 48kHz 48kHz
Audio Bit Rate Uncompressed Uncompressed

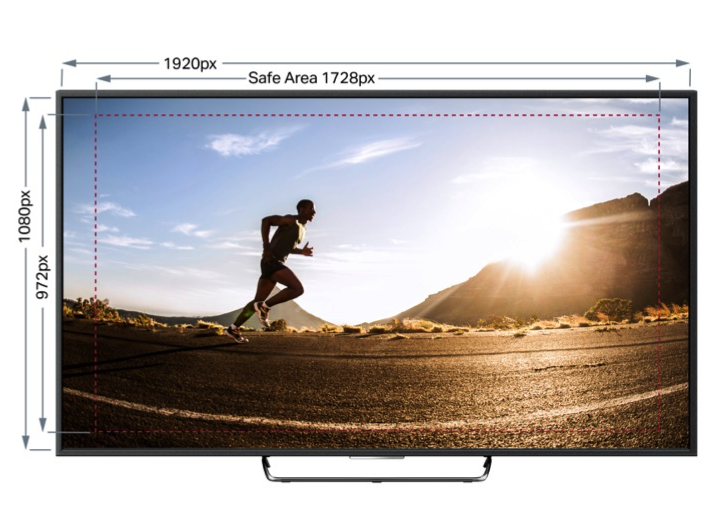

Title Safety

16:9 as per EBU R.95-1

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.



Video Levels

All video signals should comply with ITU-R BT.709-5 and video signals should not exceed the specified limits.

Video levels should not exceed 700mV, or fall below 0mv

Luminance (Y) -1% and 103%
(ie between -7mV and 721mV)
RGB video levels -5% and 105%
(ie between -35mV and 735mV)

Out of gamut tolerance

Whilst XR and the Broadcasters will reject illegal video levels they understand there may be instances where it is difficult to completely avoid, and following EBU recommendation Rec.103-2000 will allow a small tolerance, assuming that no more than 1% of the active picture is in error.


Audio Levels

Max Peak -10dBFS

  • Permitted Maximum Level : -10dBFS / +10dBu
  • Alignment Level : 1kHz@ -20dBFS
  • Ballistic : PPM Type II

Audio Channel Configurations

Stereo
Channel # Audio
1 Stereo Left
2 Stereo Right

Subtitles

This region can only accept open/burnt in captions.


Audio Description

Audio Description isn't currently supported in this region.


Clearance

Do you need help with clearance or regulatory compliance?

XR's Campaign Services teams can assist you! Please reach out to your local team for more information, additional fees apply.

All broadcast commercials need to be cleared by the Thailand TV censorship committee comprising of the 4 main broadcasters (Channels 3, 5, 7, and 9). Digital commercials do not require clearance from the censorship committee, instead they need to be cleared with the respective media owners of the digital/online platforms. All material needs to be submitted in Thai language.


Ready to go?

Reach out to your local Delivery Team for the next steps
