Regions Covered
✔ Vietnam
To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): | Clock number (no standardised format) |
| Pre/post roll required: | No |
| HD/SD: | Both |
| Audio: | Max Peak -10dBFS |
| Clearance: | Managed locally |

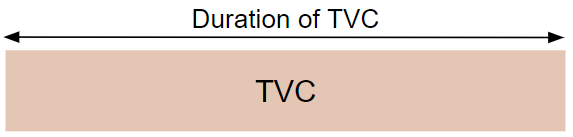

Content Layout
For this region a clock/slate is not required
HD File Specification
| Format | XDCAM 1080/50 | Apple ProRes 422HQ 1080/50 |
| Container | MOV or MXF | MOV |
| Video Codec | XDCAM 422 | Apple Quicktime ProRes 422 (HQ) |
| GOP | Long GOP | - |
| Profile | MPEG-2 422P@HL | HQ |
| Frame Size | 1920x1080 | 1920x1080 |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio | 16:9 | 16:9 |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) |
| Video Bit Rate | 50Mb/s CBR | - |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | Integer (Big/Little Endian) PCM | Integer (Little Endian) PCM |
| Audio Bit Depth | 24bit | 24bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |

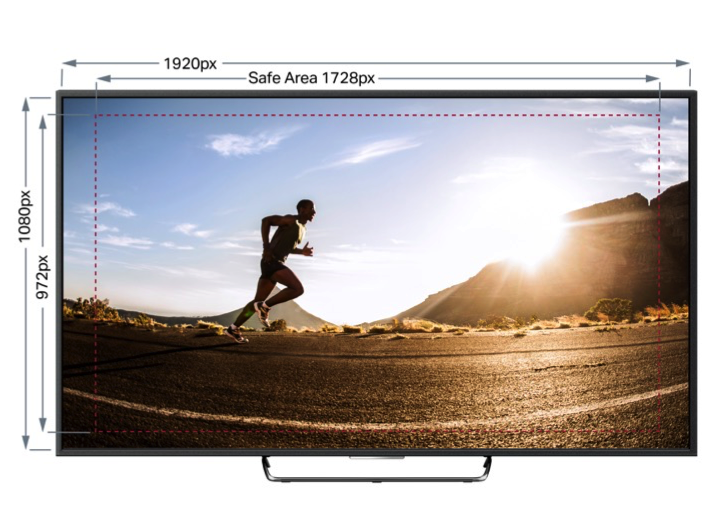

HD Title Safety
16:9 as per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Important
Product packing/Pack shot needs to be displayed within the title safe area.
Please ensure that any logos/graphics displayed are not overlapping any stations’/channels’ logos as per the guide provided by respective media agencies.
SD File Specification
| Format | Apple ProRes 422HQ 625/50 | IMX50 625/50 |
| Container | MOV | MOV or MXF |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | MPEG IMX 625/50 |
| GOP | - | - |
| Profile | HQ | - |
| Frame Size | 720x576 | 720x576 (608 inc VBI) |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio |
4:3 or 16:9 FHA |
4:3 or 16:9 FHA |
| Video Bit Rate | - | - |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | Integer (Little Endian) PCM | Integer (Little Endian) PCM |
| Audio Bit Depth | 16 bit | 16 bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |
SD Title Safety
4:3 (4:3) / 14:9 (16:9)
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Important
Product packing/Pack shot needs to be displayed within the title safe area
Please ensure that any logos/graphics displayed are not overlapping any stations’/channels’ logo as per the guide provided by respective media agencies.
Video Levels
All video signals should comply with ITU-R BT.709-5 (HD) or ITU-R BT.601-7 (SD) and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)
Out of gamut tolerance
Whilst XR and the Broadcasters will reject illegal video levels they understand there may be instances where it is difficult to completely avoid, and following EBU recommendation Rec.103-2000 will allow a small tolerance, assuming that no more than 1% of the active picture is in error.
Audio Levels
Max Peak -10dBFS
- Permitted Maximum Level : -10dBFS / +10dBu
- Alignment Level : 1kHz@ -20dBFS
- Ballistic : PPM Type II
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
| 2 | Stereo Right |
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
In this region the clearance process is handled locally, please reach out to your Media Agency contact for more information.
