Cambodia Broadcast Specifications and Requirements

Regions Covered

✔ Cambodia

To maintain a consistently high quality product XR requires all material for distribution in this region to be supplied to the following specifications.

Requirements at a glance

Unique identifier(s): No standardised format
Pre/Post roll required: Yes
HD/SD: Both
Audio: Max Peak -10dBFS
Clearance: Managed locally

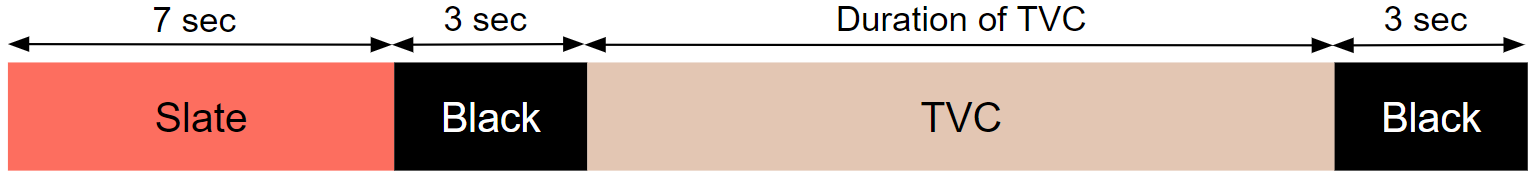

Content Layout

Slate and black end.png

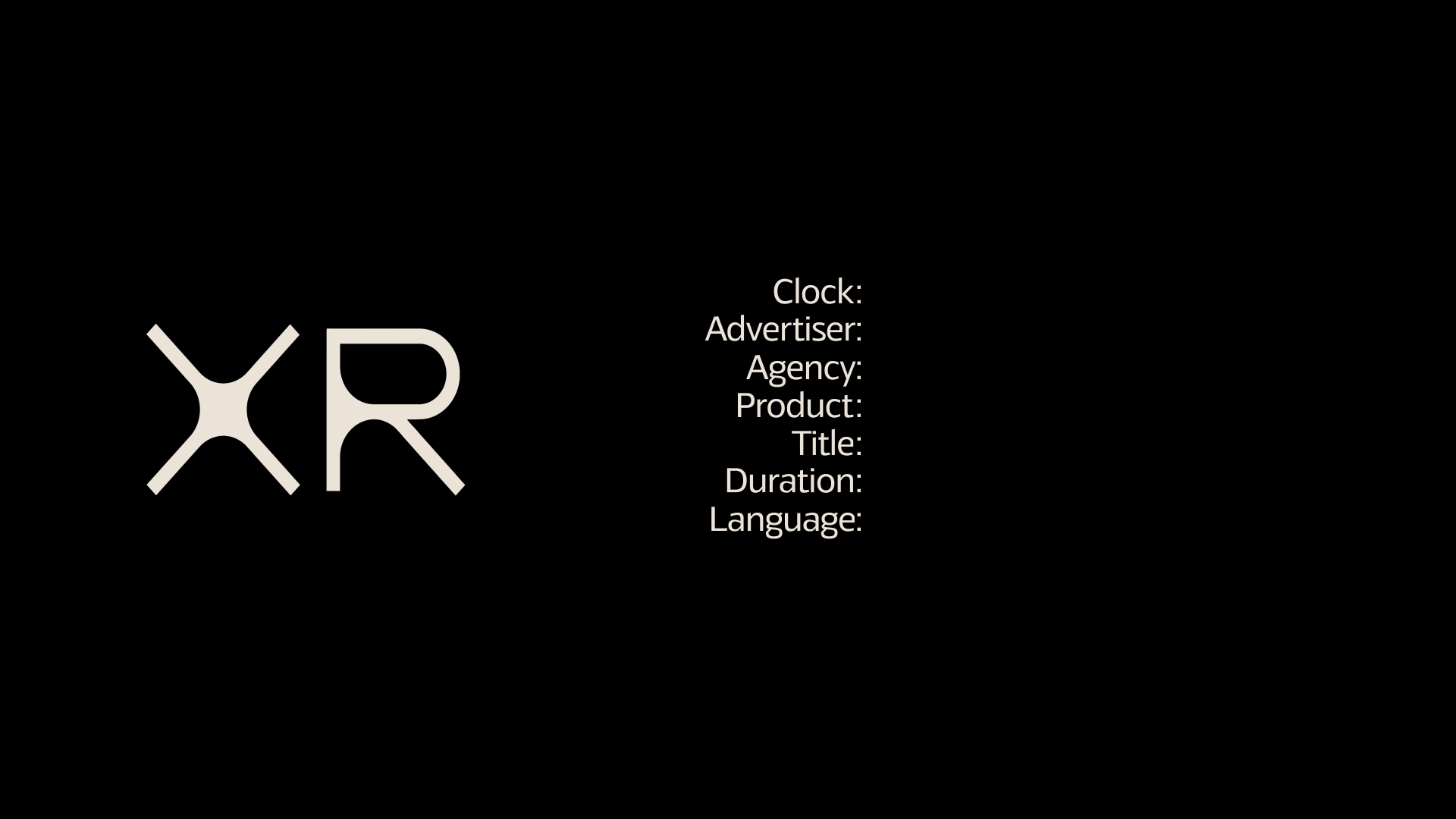

Slate

A slate is mandatory for this region, it should display the following information:

XR Asia HD Clock Black no countdown.png

Clock must be mute

If there is any audio it will fail QC


HD File Specification

  Preferred
Format XDCAM 1080/50 Apple ProRes 422HQ 1080/50
Container MOV or MXF MOV
Video Codec XDCAM 422 Apple Quicktime ProRes 422 (HQ)
GOP Long GOP -
Profile MPEG-2 422P@HL HQ
Frame Size 1920x1080 1920x1080
Frame Rate 25 FPS 25 FPS
Scan Type Interlaced, Upper/Top Field First Interlaced, Upper/Top Field First
Aspect Ratio 16:9 16:9
Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)
Video Bit Rate 50Mb/s CBR -
Chroma 4:2:2 4:2:2
Audio Codec Integer (Big/Little Endian) PCM Integer (Little Endian) PCM
Audio Bit Depth 24bit 24bit
Audio Sample Rate 48kHz 48kHz
Audio Bit Rate Uncompressed Uncompressed

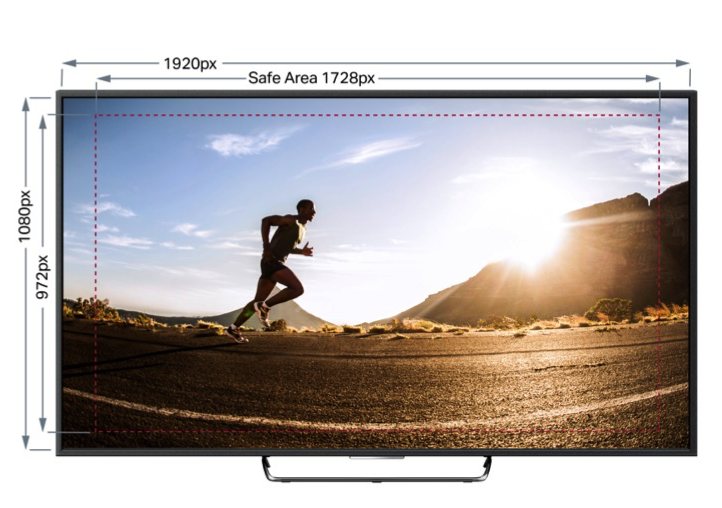

HD Title Safety

EBU R.95-1

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.



SD File Specification

  Preferred   Accepted
Format Apple ProRes 422HQ 625/50   MPEG-2 Program Stream 625/50
Container MOV   MPEG-2 Program Stream
Video Codec Apple Quicktime ProRes 422 (HQ)   MPEG-2
GOP -   I Frame Only
Profile HQ   422P@ML
Frame Size 720x576   720x576
(608 inc VBI)
Frame Rate 25 FPS   25 FPS
Scan Type Interlaced, Upper/Top Field First   Interlaced, Upper/Top Field First
Aspect Ratio

4:3



4:3

Pixel Aspect Ratio Square Pixels (1.0)   Square Pixels (1.0)
Video Bit Rate -   100Mb/s CBR
Chroma 4:2:2   4:2:2
Audio Codec Integer (Little Endian) PCM   MPEG1 Layer-2
Audio Bit Depth 16/24bit   16 bit
Audio Sample Rate 48kHz   48kHz
Audio Bit Rate Uncompressed   Uncompressed

SD Title Safety

EBU R.95-1

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.


Video Levels

All video signals should comply with ITU-R BT.709-5 (HD) or ITU-R BT.601-7 (SD) and video signals should not exceed the specified limits.

Video levels should not exceed 700mV, or fall below 0mv

Luminance correction

Video content that exhibits brighter/darker or more saturated areas than the defined level but are within the listed tolerance levels will be automatically adjusted to the defined levels.

In very rare cases this can create a small but visible alteration to the image.  If you are concerned about this then we advise you to supply files that meet the specifications. We have to do this to ensure conformity with as many broadcast destinations as possible.


Audio Levels

Max Peak -10dBFS

  • Permitted Maximum Level : -10dBFS / +10dBu
  • Alignment Level : 1kHz@ -20dBFS
  • Ballistic : PPM Type II

Audio Channel Configurations

Stereo
Channel # Audio
1 Stereo Left
2 Stereo Right

Subtitles

This region can only accept open/burnt in captions.


Audio Description

Audio Description isn't currently supported in this region.


Clearance

In this region the clearance process is handled locally, please reach out to your Media Agency contact for more information.


Other Important Information

Deliveries to the region are strictly through media agencies. Broadcasters will not accept files delivered to them directly. Please provide the relevant media agency contact details.


Ready to go?

Reach out to your local Delivery Team for the next steps
