Regions Covered

✔ Malaysia

To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:

Requirements at a glance

Unique identifier(s):
Pre/post roll: No
HD/SD: HD or 2K
Audio: Stereo or 5.1
Clearance: Required

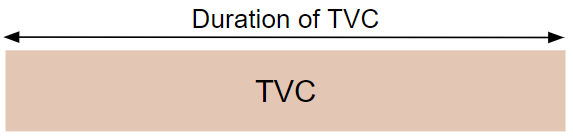

Content Layout

For this region a clock/slate is not required

TVC only general.png


File Specification

Format Apple ProRes 422HQ 1080/50 TARGA / DPX sequence
Container MOV TGA / DPX
Video Codec Apple Quicktime ProRes 422 (HQ) -
GOP - -
Profile HQ
Frame Size

2K: 1998 x 1080 or

HD: 1920 x 1080

2K: 1998 x 1080 or

HD: 1920 x 1080

Frame Rate 24fps or 25fps* 24fps or 25fps*
Scan Type Progressive
Aspect Ratio 16:9 16:9
Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)
Video Bit Rate -
Chroma 4:2:2
Audio Codec Integer (Little Endian) PCM
Audio Bit Depth 24bit
Audio Sample Rate 48kHz
Audio Bit Rate Uncompressed


*If 25fps is supplied, a frame rate conversion to 24fps will be done when creating the DCP.


Title Safety

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.

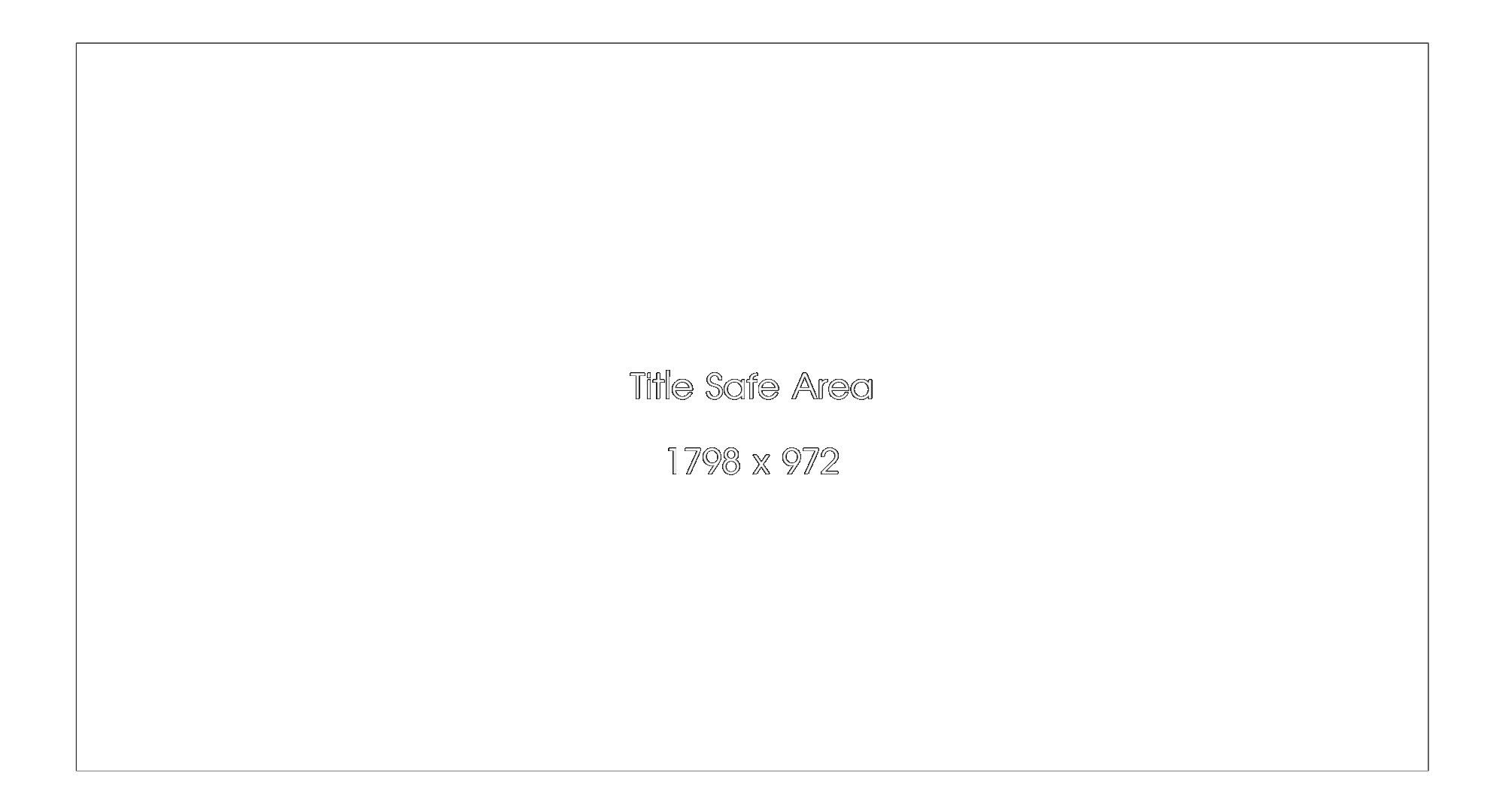

1998x1080
Title Safe area: 1798 x 972

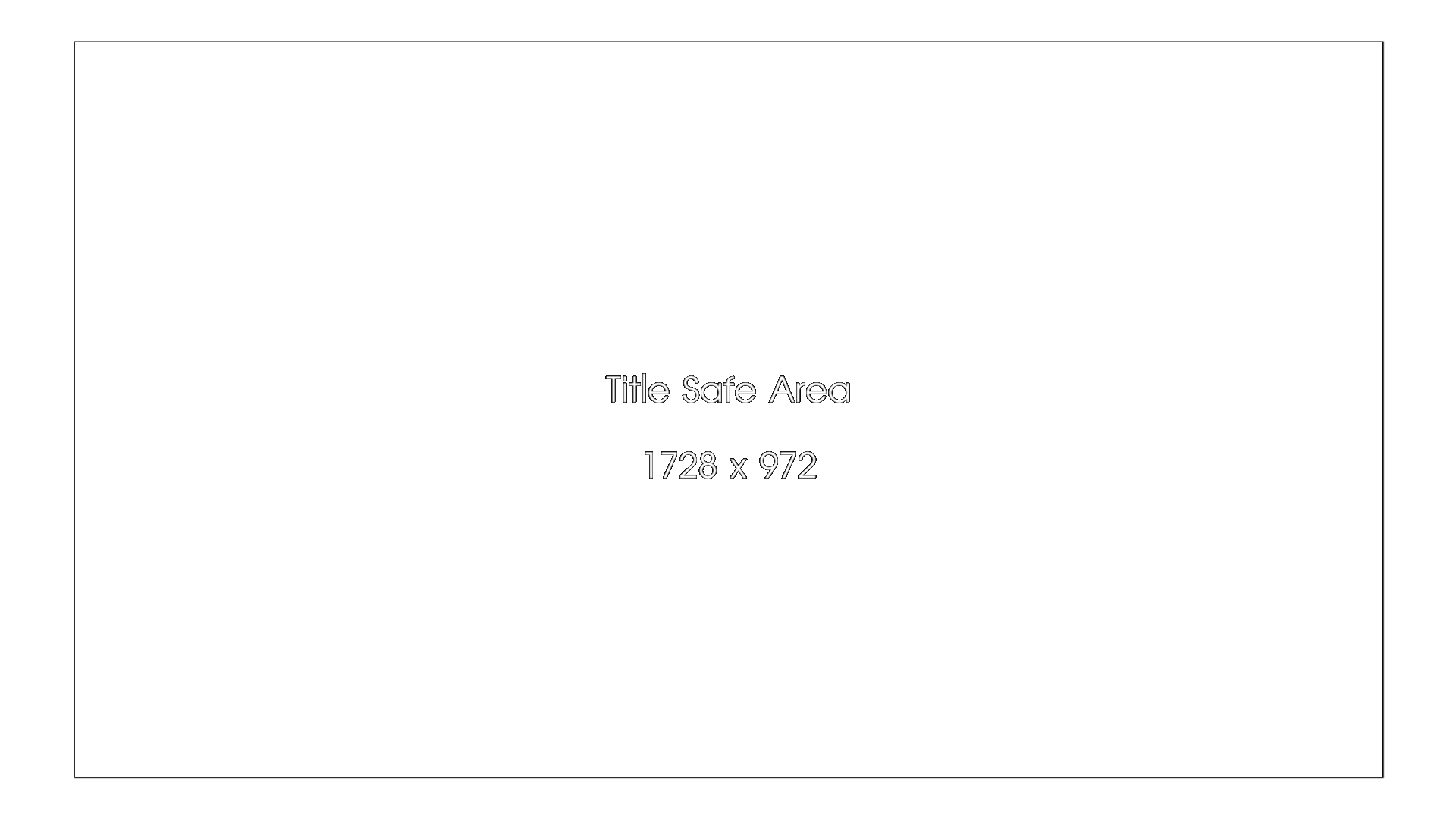

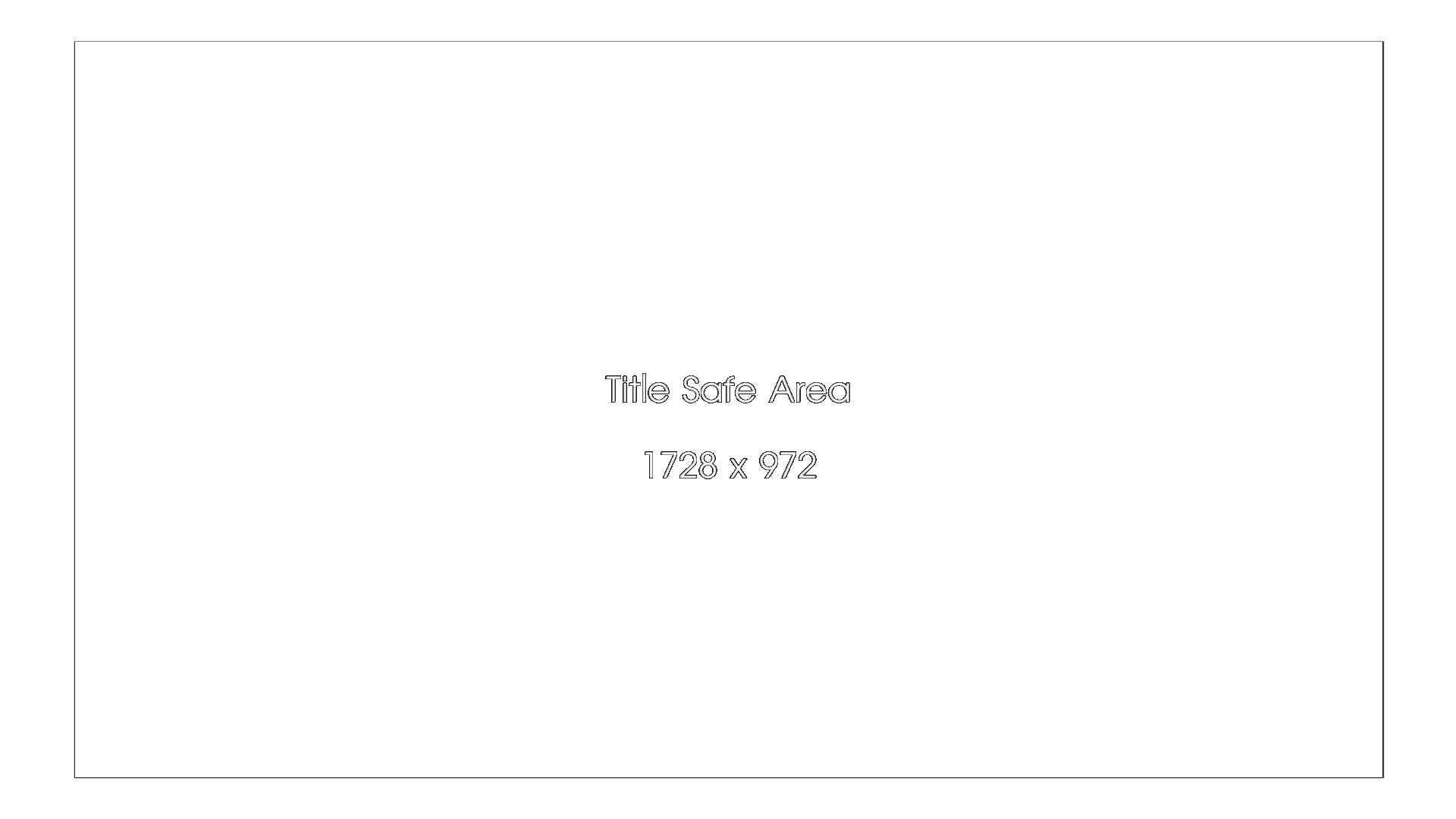

1920x1080
Title Safe area: 1728 x 972


Video Levels



All video signals should comply with ITU-R BT.709-5 and video signals should not exceed the specified limits.

Video levels should not exceed 700mV, or fall below 0mv

Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)


Audio Levels

Max Peak -10dBFS

  • Permitted Maximum Level : -10dBFS / +10dBu
  • Alignment Level : 1kHz@ -20dBFS
  • Ballistic : PPM Type II

Please note

If supplied separately, audio must be the same duration as video


Audio Channel Configurations

Stereo
Channel # Audio
1 Stereo Left
2 Stereo Right
5.1 Surround Sound
Channel # Audio
1 Left Front
2 Right Front
3 Centre
4 LFE
5 Left Surround
6 Right Surround

Subtitles

This region can only accept open/burnt in captions.


Audio Description

Audio Description isn't currently supported in this region.


Clearance

Do you need help with clearance or regulatory compliance?

XR's Campaign Services teams can assist you! Please reach out to your local team for more information, additional fees apply.


Ready to go?

Reach out to your local Delivery Team for the next steps
