Regions Covered
✔ Turkey
To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): |
The clock number on the order must contain a maximum of 20 characters
|
| Pre/post roll: | No |
| HD/SD: | Both |
| Audio: | Max peak -10dBFS |
| Clearance: | No pre-clearance required |

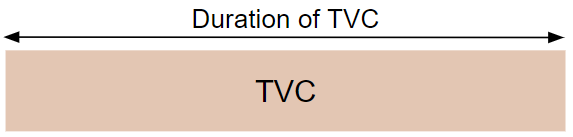

Content Layout
For this region a clock/slate is not required
HD File Specification
| Format | MXF Wrapped XDCAM 1080/50 | Apple ProRes 422HQ 1080/50 |
| Container | MXF | MOV |
| Video Codec | XDCAM 422 | Apple Quicktime ProRes 422 (HQ) |
| GOP | Long GOP | - |
| Profile | MPEG-2 422P@HL | HQ |
| Frame Size | 1920x1080 | 1920x1080 |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio | 16:9 | 16:9 |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) |
| Video Bit Rate | 50Mb/s CBR | - |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | Integer (Big/Little Endian) PCM | Integer (Little Endian) PCM |
| Audio Bit Depth | 24bit | 24bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |
HD Title Safety
16:9 as per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
SD File Specification
| Format | Apple ProRes 422HQ 625/50 | IMX50 625/50 |
| Container | MOV | MOV or MXF |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | MPEG IMX 625/50 |
| GOP | - | - |
| Profile | HQ | - |
| Frame Size | 720x576 | 720x576 (608 inc VBI) |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio |
4:3 or 16:9 FHA |
4:3 or 16:9 FHA |
| Video Bit Rate | - | - |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | Integer (Little Endian) PCM | Integer (Little Endian) PCM |
| Audio Bit Depth | 16 bit | 16 bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |
SD Title Safety
16:9 / 4:3 per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Video Levels
All video signals should comply with ITU-R BT.709-5 (HD) or ITU-R BT.601-7 (SD) and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)
Audio Levels
PPM / Max Peak
- Permitted Maximum Level : -10dBFS / 6PPM / +8dBU
- Alignment Level : -18dBFS
- Ballistic : PPM Type II
Refer to EBU R68-2000 for guidance on alignment levels and permitted maximum levels
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
| 2 | Stereo Right |
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
Local clearance in Turkey is managed by the legal department at the broadcaster. No pre-approval is needed.
