Regions Covered
✔ Eurosport International Pan Euro
To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): | Clock number (no standardised format) |
| Pre/post roll: | No |
| HD/SD: | HD |
| Audio: | EBU R.128-2014 |
| Clearance: | No pre-clearance required |

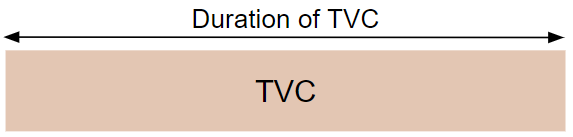

Content Layout
For this region a clock/slate is not required.
File Specification
| Format | XDCAM 1080/50 | Apple ProRes 422HQ 1080/50 |
| Container | MOV or MXF | MOV |
| Video Codec | XDCAM 422 | Apple Quicktime ProRes 422 (HQ) |
| GOP | Long GOP | - |
| Profile | MPEG-2 422P@HL | HQ |
| Frame Size | 1920x1080 | 1920x1080 |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio | 16:9 | 16:9 |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) |
| Video Bit Rate | 50Mb/s CBR | - |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | Integer (Big/Little Endian) PCM | Integer (Little Endian) PCM |
| Audio Bit Depth | 24bit | 24bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |

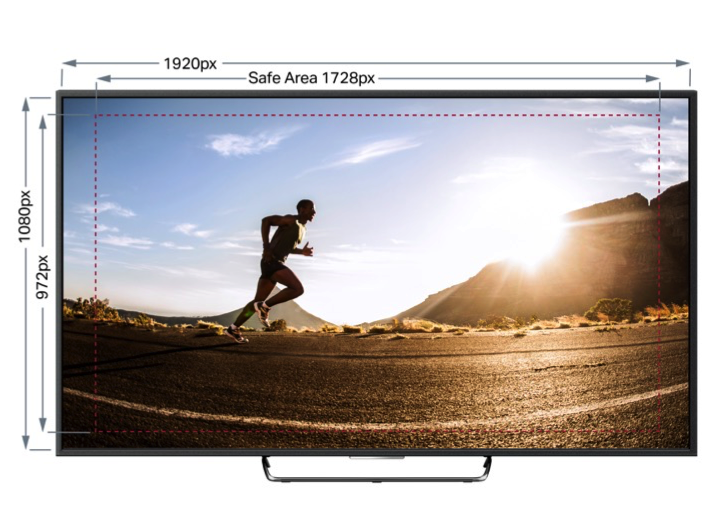

Title Safety
CST - RT 018 TV V3.0-2017
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
For additional information on Title Safe requirements, see: CST - RT 018 TV V3.0-2017
Video Levels
All video signals should comply with ITU-R BT.709-5 and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance (Y) -1% and 103%
(ie between -7mV and 721mV)
RGB video levels -5% and 105%
(ie between -35mV and 735mV)
Out of gamut tolerance
Whilst XR and the Broadcasters will reject illegal video levels they understand there may be instances where it is difficult to completely avoid, and following EBU recommendation Rec.103-2000 will allow a small tolerance, assuming that no more than 1% of the active picture is in error.
Audio Levels
The loudness level of the programme material must be in agreement with the EBU R128-2014 directive, including the following delivery specifications:
EBU R.128-2014
- Integrated Loudness** Program : -23 LUFS
- Target Level Tolerance : +/- 1 LU
- Maximum True Peak : -3dBTP
- Maximum Momentary : No Limitations
- Maximum Short Term Momentary (3 Sec) : No Limitations
- Loudness Range : No Limitations
**'Integrated Loudness' is the definition for the target of the 'Programme Loudness' stated in metres in conformity with EBU Tech 3341.
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
| 2 | Stereo Right |
| Channel # | Audio |
| 1 | Mono |
| 2 | Mono |
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
Compliance checks are handled by Eurosport once they receive the spot from XR, no pre-clearance required.
