Hungary Broadcast Specifications and Requirements

Regions Covered

✔ Hungary

To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:

Requirements at a glance

Unique identifier(s):

Clock number is generated by the media agency, it must conform to the following format:

AAA/YY/BBB/PPP/VV/SS

• AAA: Agency (3 characters)
• YY: Year (2 characters)
• BBB: Brand (3 characters)
• PPP: Product (3 characters)
• VV: Version (2 digits)
• SS: Length in seconds (2 digits)

Pre/post roll required: No
HD/SD: HD
Audio: R128
Clearance: Managed locally

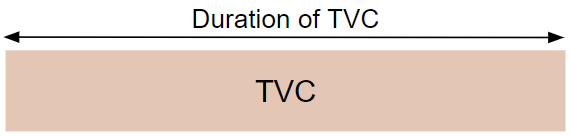

Content Layout

For this region a clock/slate is not required

TVC only general.png


File Specification

  Preferred   Accepted
Format XDCAM 1080/50 Apple ProRes 422HQ 1080/50   MPEG-2 Transport Stream 1080/50
Container MOV or MXF MOV   MPEG-2 Transport Stream
Video Codec XDCAM 422 Apple Quicktime ProRes 422 (HQ)   MPEG-2
GOP Long GOP -   I Frame Only
Profile MPEG-2 422P@HL HQ   422P@HL
Frame Size 1920x1080 1920x1080   1920x1080
Frame Rate 25 FPS 25 FPS   25 FPS
Scan Type Interlaced, Upper/Top Field First Interlaced, Upper/Top Field First   Interlaced, Upper/Top Field First
Aspect Ratio 16:9 16:9   16:9
Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)   Square Pixels (1.0)
Video Bit Rate 50Mb/s CBR -   100Mb/s CBR
Chroma 4:2:2 4:2:2   4:2:2
Audio Codec Integer (Big/Little Endian) PCM Integer (Little Endian) PCM   PCM
Audio Bit Depth 24bit 24bit   24bit
Audio Sample Rate 48kHz 48kHz   48kHz
Audio Bit Rate Uncompressed Uncompressed   Uncompressed

Video Levels

All video signals should comply with ITU-R BT.709-5 and video signals should not exceed the specified limits.

Video levels should not exceed 700mV, or fall below 0mv

Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)

Out of gamut tolerance

Whilst XR and the Broadcasters will reject illegal video levels, they understand there may be instances where it is difficult to completely avoid. Following EBU recommendation Rec.103-2000 they will therefore allow a small tolerance, assuming that no more than 1% of the active picture is in error.


Audio Levels

EBU R.128-2014
• Integrated Loudness Program : -23 LUFS
• Target Level Tolerance : +/- 0.5 LU
• Maximum True Peak : -3dBTP


Audio Channel Configurations

Stereo
Channel # Audio
1 Stereo Left
2 Stereo Right

Subtitles

This region can only accept open/burnt in captions.


Audio Description

Audio Description isn't currently supported in this region.


Clearance

In this region the clearance process is handled locally, please reach out to your Media Agency contact for more information.


Ready to go?

Reach out to your local Delivery Team for the next steps
