Regions Covered
✔ Poland
To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): | Clock number (no standardised formats) |
| Pre/post roll: | No |
| HD/SD: | Both |
| Audio: | R128 |
| Clearance: | No pre-approval required |

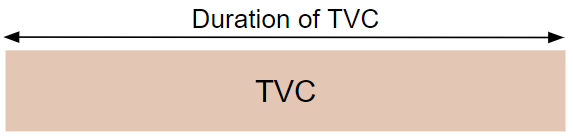

Content Layout
For this region a clock/slate is not required
HD File Specification
| Format | Apple ProRes 422HQ 1080/50 | XDCAMHD422 1080/50 |
| Container | MOV | MXF or MOV |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | XDCAMHD422 |
| GOP | - | Long GOP |
| Profile | HQ | MPEG-2 422P@HL |
| Frame Size | 1920x1080 | 1920x1080 |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio | 16:9 | 16:9 |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) |
| Video Bit Rate | - | 50Mb/s CBR |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | PCM (Little Endian) | PCM (Big/Little Endian) |
| Audio Bit Depth | 24bit | 24bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |

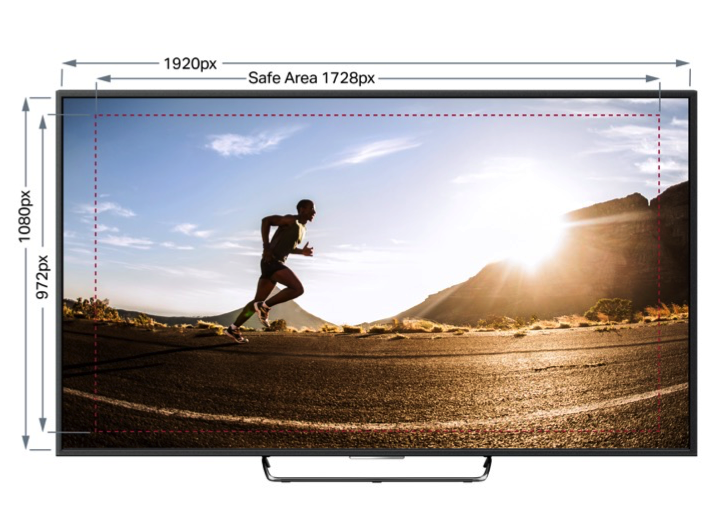

HD Title Safety
16:9 as per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
SD File Specification
| Format | Apple ProRes 422HQ 625/50 | MPEG-2 Program Stream 625/50 |
| Container | MOV | MPEG-2 Program Stream |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | MPEG-2 |
| GOP | - | - |
| Profile | HQ | 422P@ML |
| Frame Size | 1920x1080 | 1920x1080 |
| Frame Rate | 25 FPS | 25 FPS |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First |
| Aspect Ratio | 16:9 | 16:9 |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) |
| Video Bit Rate | - | 50Mb/s CBR |
| Chroma | 4:2:2 | 4:2:2 |
| Audio Codec | PCM (Little Endian) | MPEG1 Layer-2 |
| Audio Bit Depth | 24bit | 24bit |
| Audio Sample Rate | 48kHz | 48kHz |
| Audio Bit Rate | Uncompressed | Uncompressed |
SD Title Safety
16:9 as per EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Video Levels
All video signals should comply with ITU-R BT.709-5 and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)
Out of gamut tolerance
Whilst XR and the Broadcasters will reject illegal video levels, they understand there may be instances where it is difficult to completely avoid. Following EBU recommendation Rec.103-2000 they will therefore allow a small tolerance, assuming that no more than 1% of the active picture is in error.
Audio Levels
EBU R.128-2014
• Integrated Loudness Program : -23 LUFS
• Target Level Tolerance : +/- 0.5 LU
• Maximum True Peak : -3dBTP
• Maximum Momentary : -15 LUFS
• Maximum Short Term (3 Sec) : -20 LUFS
• Loudness Range : 20 LU
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
| 2 | Stereo Right |
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
Compliance checks are handled by the individual broadcasters once they receive the spot from XR, no pre-clearance required.
Other Important Info
Uploading content to some Polish broadcasts incurs an additional fee. The affected broadcasters are clearly highlight on the XR platform.
If any music is used during a commercial, information such as the composer and producer must be entered on the platform when you place your order.
