Regions Covered

✔ Slovakia

To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:

Requirements at a glance

Unique identifier(s): Clock number (no standardised format)
Pre/post roll required: No
HD/SD: HD
Audio: R128
Clearance: No pre-approval required

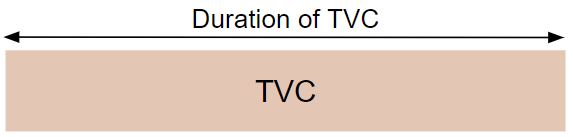

Content Layout

For this region a clock/slate is not required

TVC only general.png


File Specification

Format XDCAM 1080/50 Apple ProRes 422HQ
Container MOV or MXF MOV
Video Codec XDCAM 422 Apple Quicktime ProRes 422 (HQ)
GOP Long GOP -
Profile MPEG-2 422P@HL HQ
Frame Size 1920x1080 1920x1080
Frame Rate 25 FPS 25 FPS
Scan Type Interlaced, Upper/Top Field First Interlaced, Upper/Top Field First
Aspect Ratio 16:9 16:9
Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)
Video Bit Rate 50Mb/s CBR -
Chroma 4:2:2 4:2:2
Audio Codec Integer (Big/Little Endian) PCM Integer (Little Endian) PCM
Audio Bit Depth 24bit 24bit
Audio Sample Rate 48kHz 48kHz
Audio Bit Rate Uncompressed Uncompressed

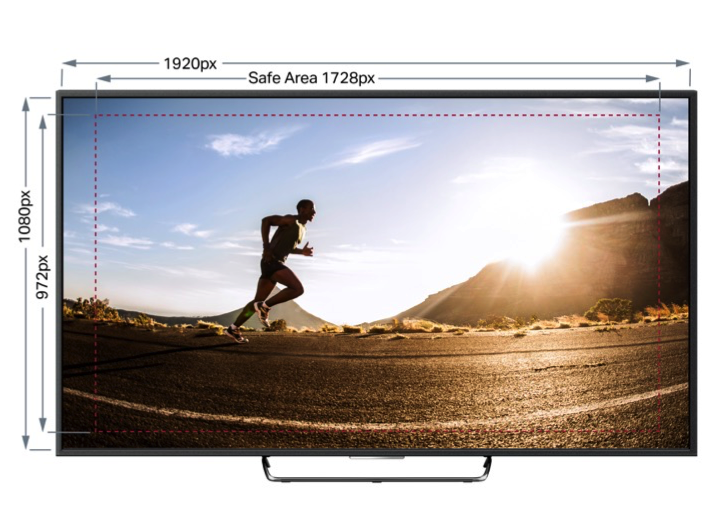

Title Safety

EBU R.95-1

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.


Video Levels

All video signals should comply with ITU-R BT.709-5 and video signals should not exceed the specified limits.

Video levels should not exceed 700mV, or fall below 0mv

Luminance (Y) -1% and 103%
(ie between -7mV and 721mV)
RGB video levels -5% and 105%
(ie between -35mV and 735mV)

Out of gamut tolerance

Whilst XR and the Broadcasters will reject illegal video levels they understand there may be instances where it is difficult to completely avoid, and following EBU recommendation Rec.103-2000 will allow a small tolerance, assuming that no more than 1% of the active picture is in error.


Audio Levels

The loudness level of the programme material must be in agreement with the EBU R128-2014 directive, including the following delivery specifications:
EBU R.128-2014

  • Integrated Loudness** Program : -23 LUFS
  • Target Level Tolerance : +/- 0.1 LU
  • Maximum True Peak : -1dBTP
  • Maximum Momentary : -15 LUFS
  • Maximum Short Term Momentary (3 Sec) : -20 LUFS
  • Loudness Range : 15 LU

**'Integrated Loudness' is the definition for the target of the 'Programme Loudness' stated in metres in conformity with EBU Tech 3341.


Audio Channel Configurations

Stereo
Channel # Audio
1 Stereo Left
2 Stereo Right

Subtitles/Captions

This region can only accept open/burnt in captions.


Audio Description

Audio Description isn't currently supported in this region.


Clearance

Compliance checks are handled by the individual broadcasters once they receive the spot from XR, no pre-clearance required.


Other Important Information

Where commercial music is used, all rights information must be added during order placement. The names of the artist, composer and music title are all mandatory.
