Regions Covered
✔ Hong Kong
To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): | Clock number (no standardised format) |
| Pre/post roll: | Yes |
| HD/SD: | Both |
| Audio: | Max Peak -10dBFS |
| Clearance: | Commercials must be approved by each broadcaster before they air. See Clearance for more info. |

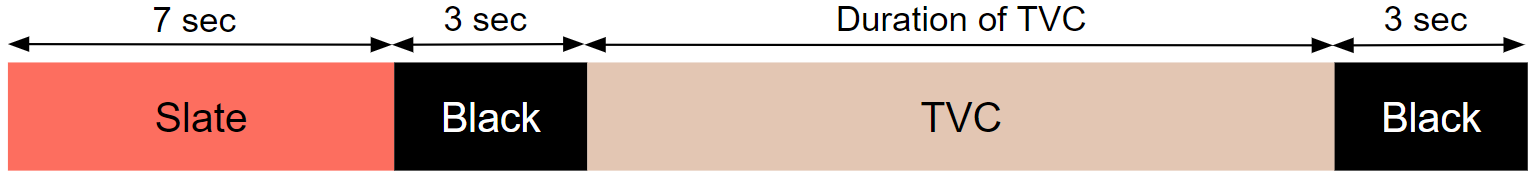

Content Layout

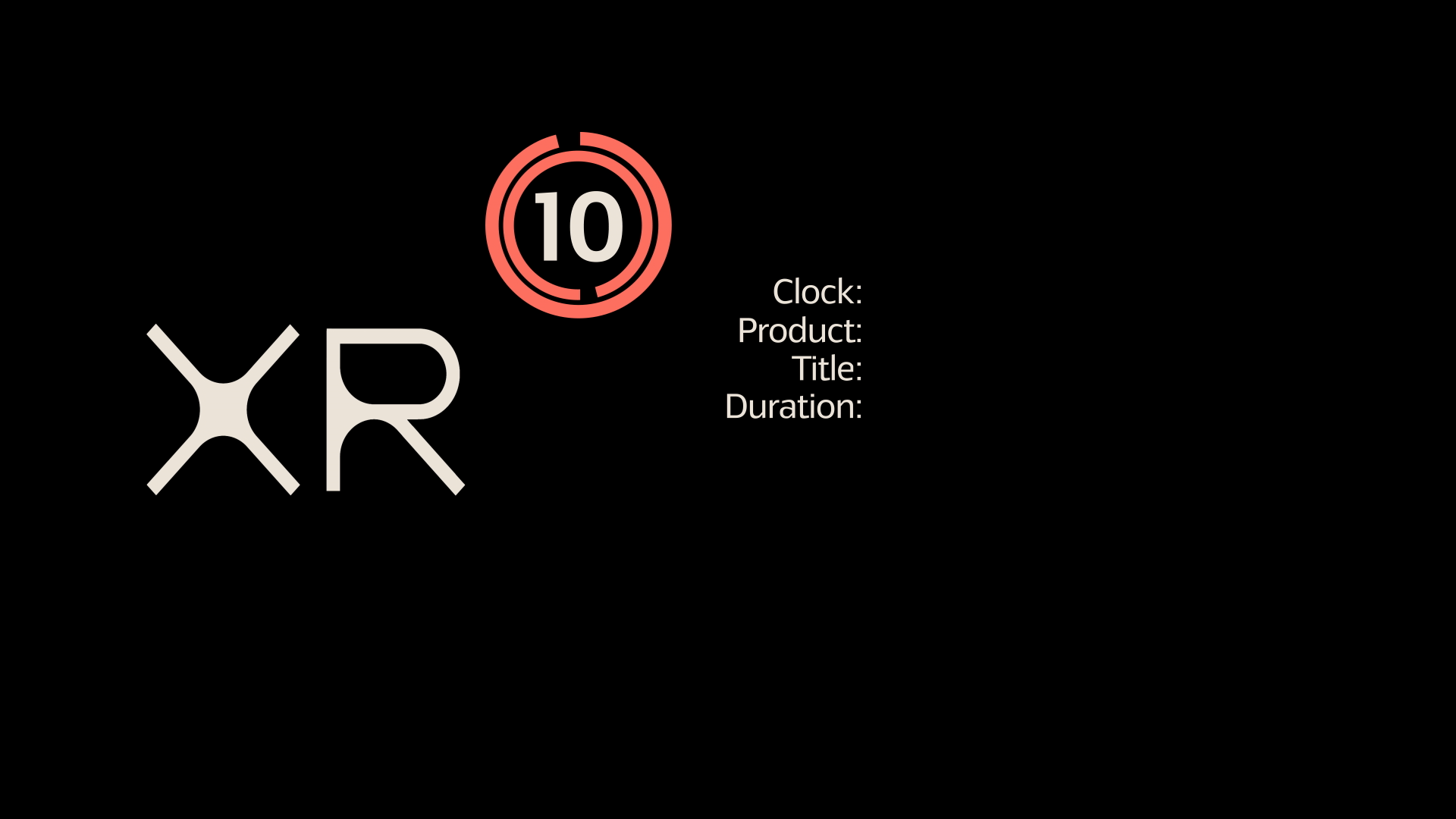

Countdown Clock
A clock is mandatory, it should display a countdown starting at 10 and the following information:
Clock must be mute
If there is any audio present on the countdown clock, the file will fail QC
HD File Specification
| Preferred | Accepted | |||
| Format | XDCAM 1080/50 | Apple ProRes 422HQ 1080/50 | MPEG-2 Transport Stream 1080/50 | |
| Container | MOV or MXF | MOV | MPEG-2 Transport Stream | |
| Video Codec | XDCAM 422 | Apple Quicktime ProRes 422 (HQ) | MPEG-2 | |
| GOP | Long GOP | - | - | |
| Profile | MPEG-2 422P@HL | HQ | 4:2:2 Profile @HighLevel (422P@HL) | |
| Frame Size | 1920x1080 | 1920x1080 | 1920x1080 | |
| Frame Rate | 25 FPS | 25 FPS | 25 FPS | |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) | Square Pixels (1.0) | |
| Video Bit Rate | 50Mb/s CBR | - | 100Mb/s CBR | |
| Chroma | 4:2:2 | 4:2:2 | 4:2:2 | |
| Audio Codec | Integer (Big/Little Endian) PCM | Integer (Little Endian) PCM | Integer (Big/Little Endian) PCM | |
| Audio Bit Depth | 24bit | 24bit | 24bit | |
| Audio Sample Rate | 48kHz | 48kHz | 48kHz | |
| Audio Bit Rate | Uncompressed | Uncompressed | Uncompressed | |

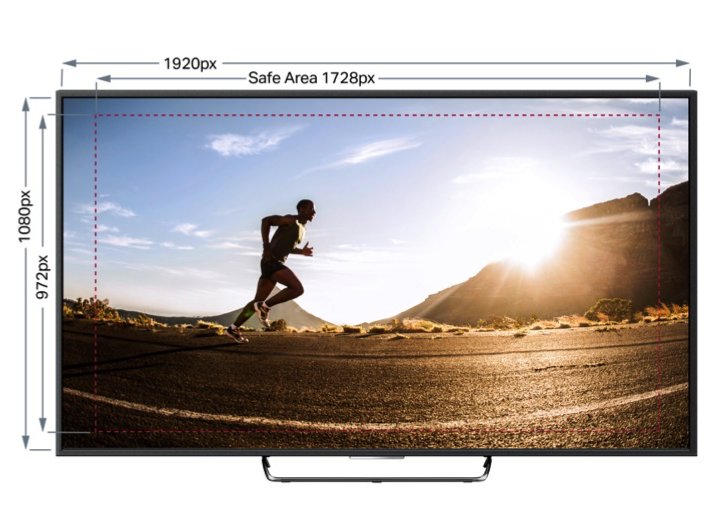

HD Title Safety
EBU R.95-1
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
SD File Specification
| Preferred | Accepted | |||
| Format | Apple ProRes 422HQ 625/50 | IMX50 625/50 | MPEG-2 Program Stream 625/50 | |
| Container | MOV | MOV or MXF | MPEG-2 Program Stream | |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | MPEG IMX 625/50 | MPEG-2 | |
| GOP | - | - | I Frame Only | |
| Profile | HQ | - | 422P@ML | |
| Frame Size | 720x576 | 720x576 (608 inc VBI) |
720x576 (608 inc VBI) |
|
| Frame Rate | 25 FPS | 25 FPS | 25 FPS | |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | |
| Aspect Ratio |
4:3, 16:9 Letterbox or 16:9 FHA |
4:3, 16:9 Letterbox or 16:9 FHA |
4:3, 16:9 Letterbox or 16:9 FHA |
|
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) | Square Pixels (1.0) | |
| Video Bit Rate | - | - | 100Mb/s CBR | |
| Chroma | 4:2:2 | 4:2:2 | 4:2:2 | |
| Audio Codec | Integer (Little Endian) PCM | Integer (Little Endian) PCM | Integer (Little Endian) PCM | |
| Audio Bit Depth | 16/24bit | 16 bit | 16 bit | |
| Audio Sample Rate | 48kHz | 48kHz | 48kHz | |
| Audio Bit Rate | Uncompressed | Uncompressed | Uncompressed | |
TVB aspect ratio conversions
- 16x9 SD deliveries for TVB will be letterboxed for parallel 4x3 transmission,
- 4x3 SD deliveries for TVB will be pillar boxed for parallel 16x9 transmission.
- Any 4x3 letterbox content will be pillar boxed by TVB for 16x9 parallel transmission resulting in pillar boxed and letterboxed video.
- TVB will ARC material themselves. Likewise a note on the ARC-ing is needed
SD Title Safety
4:3
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Video Levels
All video signals should comply with BT.601-7 (SD) or ITU-R BT.709-5 (HD) and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance (Y) -1% and 103%
(ie between -7mV and 721mV)
RGB video levels -5% and 105%
(ie between -35mV and 735mV)
Out of gamut tolerance
Whilst XR and the Broadcasters will reject illegal video levels they understand there may be instances where it is difficult to completely avoid, and following EBU recommendation Rec.103-2000 will allow a small tolerance, assuming that no more than 1% of the active picture is in error.
Audio Levels
Max Peak -10dBFS
- Permitted Maximum Level : -10dBFS / +10dBu
- Alignment Level : 1kHz@ -20dBFS
- Ballistic : PPM Type II
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
|
2 |
Stereo Right |
| Channel # | Audio |
| 1 | Mandarin - Stereo Left |
| 2 | Mandarin - Stereo Right |
| 3 | Language 2 - Stereo Left |
| 4 | Language 2 - Stereo Right |
Please note!
Dolby E and 5.1 audio is not accepted.
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
Do you need help with clearance or regulatory compliance?
XR's Campaign Services teams can assist you! Please reach out to your local team for more information, additional fees apply.
Hong Kong broadcasters practice self-regulation, and the approval process is usually handled by a commercials vetting department. Each commercial needs to be cleared individually with the various broadcasters.
Materials should be submitted for clearance 10 working days before the first air date. The final master must be submitted 3 working days before the first air date.
