China Broadcast Specifications and Requirements

Regions Covered

✔ China

To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:

Requirements at a glance

Unique identifier(s): Chinese Clock No. is mandatory for Shanghai Media Group digital destinations, no English letter is allowed. Max 10 Chinese Characters (including Brand, Title and Version)
Pre/post roll required: Yes
HD/SD: Both
Audio: Max Peak -10dBFS
Clearance: CAA clearance is advised, see Clearance for more info.

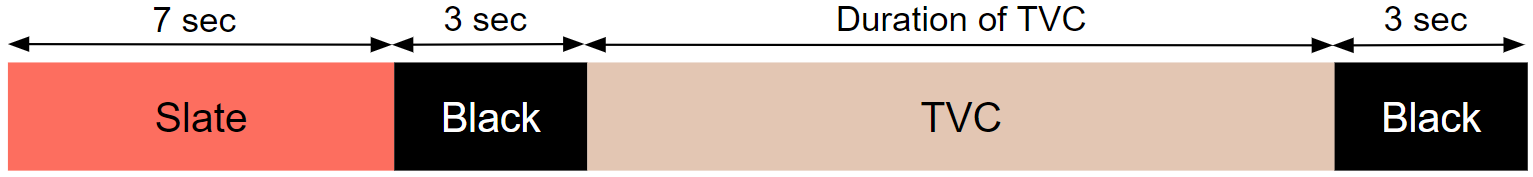

Content Layout

Slate and black end.png


Countdown Clock

A clock is mandatory for this region, it should display a countdown starting at 10 and the following information:

XR China HD Clock Black.png

Important

Clock must be mute - if there is any audio it will fail QC

The title must be in Chinese MUST match the title on the booking order of media agency to broadcasters (broadcasters may reject the delivery if there is any discrepancy in Chinese Title).

Chinese Clock No. is mandatory for Shanghai Media Group digital destinations, no English letter is allowed. Max 10 Chinese Characters (including Brand, Title and Version)


HD File Specification

  Preferred   Accepted
Format XDCAM 1080/50 Apple ProRes 422HQ 1080/50   MPEG-2 Transport Stream 1080/50
Container MOV or MXF MOV   MPEG-2 Transport Stream
Video Codec XDCAM 422 Apple Quicktime ProRes 422 (HQ)   MPEG-2
GOP Long GOP -   -
Profile MPEG-2 422P@HL HQ   4:2:2 Profile @HighLevel (422P@HL)
Frame Size 1920x1080 1920x1080   1920x1080
Frame Rate 25 FPS 25 FPS   25 FPS
Scan Type Interlaced, Upper/Top Field First Interlaced, Upper/Top Field First   Interlaced, Upper/Top Field First
Aspect Ratio 16:9 16:9   16:9
Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)   Square Pixels (1.0)
Video Bit Rate 50Mb/s CBR -   100Mb/s CBR
Chroma 4:2:2 4:2:2   4:2:2
Audio Codec Integer (Big/Little Endian) PCM Integer (Little Endian) PCM   Integer (Big/Little Endian) PCM
Audio Bit Depth 24bit 24bit   24bit
Audio Sample Rate 48kHz 48kHz   48kHz
Audio Bit Rate Uncompressed Uncompressed   Uncompressed

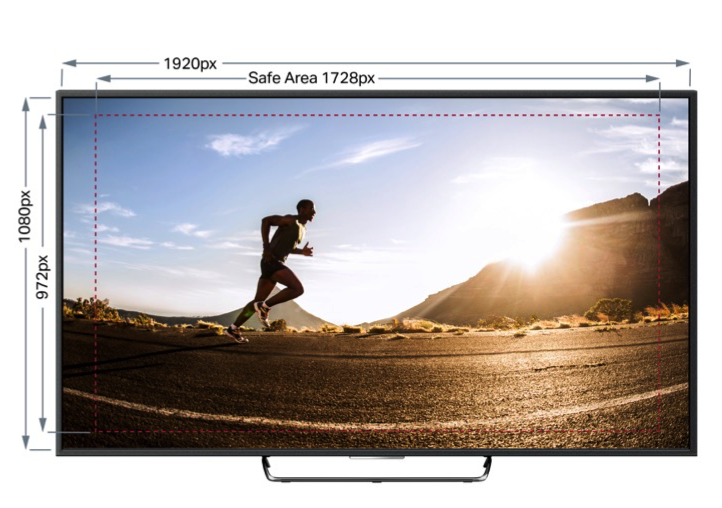

HD Title Safety

EBU R.95-1

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.



SD File Specification

  Preferred   Accepted
Format Apple ProRes 422HQ 625/50 IMX50 625/50   MPEG-2 Program Stream 625/50
Container MOV MOV or MXF   MPEG-2 Program Stream
Video Codec Apple Quicktime ProRes 422 (HQ) MPEG IMX 625/50   MPEG-2
GOP - -   I Frame Only
Profile HQ -   422P@ML
Frame Size 720x576 720x576
(608 inc VBI)
  720x576
(608 inc VBI)
Frame Rate 25 FPS 25 FPS   25 FPS
Scan Type Interlaced, Upper/Top Field First Interlaced, Upper/Top Field First   Interlaced, Upper/Top Field First
Aspect Ratio

4:3

4:3

4:3

Pixel Aspect Ratio Square Pixels (1.0) Square Pixels (1.0)   Square Pixels (1.0)
Video Bit Rate - -   100Mb/s CBR
Chroma 4:2:2 4:2:2   4:2:2
Audio Codec Integer (Little Endian) PCM Integer (Little Endian) PCM   Integer (Little Endian) PCM
Audio Bit Depth 16/24bit 16 bit   16 bit
Audio Sample Rate 48kHz 48kHz   48kHz
Audio Bit Rate Uncompressed Uncompressed   Uncompressed

SD Title Safety

EBU R.95-1

All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.


Video Levels

All video signals should comply with ITU-R BT.709-5 (HD) or ITU-R BT.601-7 (SD) and video signals should not exceed the specified limits.

Video levels should not exceed 700mV, or fall below 0mv

Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)

Out of gamut tolerance

Whilst XR and the Broadcasters will reject illegal video levels, they understand there may be instances where it is difficult to completely avoid. Following EBU recommendation Rec.103-2000 they will therefore allow a small tolerance, assuming that no more than 1% of the active picture is in error.


Audio Levels

Max Peak -10dBFS

  • Permitted Maximum Level : -10dBFS / +10dBu
  • Alignment Level : 1kHz@ -20dBFS
  • Ballistic : PPM Type II

Audio Channel Configurations

Stereo
Channel # Audio
1 Stereo Left

2

Stereo Right

Please note!

Dolby E and 5.1 audio is not accepted.


Subtitles

This region can only accept open/burnt in captions.


Audio Description

Audio Description isn't currently supported in this region.


Clearance

Do you need help with clearance or regulatory compliance?

XR's Campaign Services teams can assist you! Please reach out to your local team for more information, addtional fees apply.

Clearance in this region is generally managed locally. Chinese broadcasters normally provide free clearance services to local media buyers. The decision made by vetting department of each broadcaster is the final.
The Governing body handling broadcast censorship clearance in China is CAA (China Advertising Association). They will charge a service fee depends on different type of Ad and duration.
CAA clearance is an industry guideline in China and is not mandatory. However, it does provide an accurate guideline on censorship in China and broadcasters are more likely to accept and clear a TVC quickly if CAA certification is included.


Ready to go?

Reach out to your local Delivery Team for the next steps
