To maintain a consistently high quality product, XR requires all material to be supplied to the following specifications:
Requirements at a glance
| Unique identifier(s): | Flight Code ABCD/015/001/E/H
|
| Pre/post roll: | No |
| HD/SD: | Both |
| Audio: | EBU R.128 |
| Clearance: | No pre-approval required |
Content Layout
For this region a clock/slate is not required
HD File Specification
| Preferred | Accepted | |||
| Format | XDCAM 1080/50 | Apple ProRes 422HQ 1080/50 | Avid DNxHD 185x 1080/50 | |
| Container | MOV or MXF | MOV | MOV or MXF | |
| Video Codec | XDCAM 422 | Apple Quicktime ProRes 422 (HQ) | 10bit DNxHD | |
| GOP | Long GOP | - | - | |
| Profile | MPEG-2 422P@HL | HQ | 1080i DNxHD SQ 8-bit | |
| Frame Size | 1920x1080 | 1920x1080 | 1920x1080 | |
| Frame Rate | 25 FPS | 25 FPS | 25 FPS | |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | |
| Pixel Aspect Ratio | Square Pixels (1.0) | Square Pixels (1.0) | Square Pixels (1.0) | |
| Video Bit Rate | 50Mb/s CBR | - | 185Mb/s | |
| Chroma | 4:2:2 | 4:2:2 | 4:2:2 | |
| Audio Codec | Integer (Big/Little Endian) PCM | Integer (Little Endian) PCM | PCM | |
| Audio Bit Depth | 24bit | 24bit | 24bit | |
| Audio Sample Rate | 48kHz | 48kHz | 48kHz | |
| Audio Bit Rate | Uncompressed | Uncompressed | Uncompressed | |

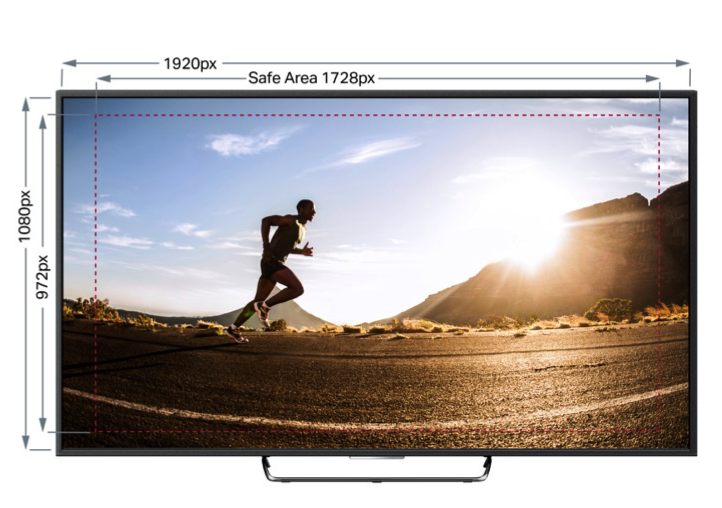

HD Title Safety
16:9 as per EBU R.95-2008
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
SD File Specification
| Preferred | Accepted | |||
| Format | Apple ProRes 422HQ 625/50 | MPEG-2 Program Stream 625/50 Long GOP | Quicktime MOV (H.264) 625/50 | |
| Container | MOV | MPEG-2 Program Stream | MOV | |
| Video Codec | Apple Quicktime ProRes 422 (HQ) | MPEG-2 | H.264 | |
| GOP | - |
Long GOP 12 (IBBPIBBP...) |
- | |
| Profile | HQ | 4:2:2 Profile @MainLevel (422P@ML) | 'Best' Quality | |
| Frame Size | 720x576 | 720x576 | 720x576 | |
| Frame Rate | 25 FPS | 25 FPS | 25 FPS | |
| Scan Type | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | Interlaced, Upper/Top Field First | |
| Aspect Ratio | 4:3 or 16:9 FHA | 4:3 or 16:9 FHA | 4:3 or 16:9 FHA | |
| Video Bit Rate | - | 25Mb/s CBR | 15Mb/s or Higher (25Mb/s Preferred) | |
| Chroma | 4:2:2 | 4:2:2 | 4:2:2 | |
| Audio Codec | Integer (Little Endian) PCM | MPEG1 Layer-2 | Integer (Little Endian) PCM or ACC | |
| Audio Bit Depth | 16 bit | 16 bit | 16 bit | |
| Audio Sample Rate | 48kHz | 48kHz | 48kHz | |
| Audio Bit Rate | Uncompressed | Uncompressed | Uncompressed | |
SD Title Safety
4:3 / 16:9 as per EBU R.95-2008
All graphics, text, and frame composition elements should be placed within the safe title area to prevent key content from being cut off.
Video Levels
All video signals should comply with ITU-R BT.709-5 (HD) or ITU-R BT.601-7 (SD) and video signals should not exceed the specified limits.
Video levels should not exceed 700mV, or fall below 0mv
Luminance (Y) -1% and 103%
(between -7mV and 721mV)
RGB video levels -5% and 105%
(between -35mV and 735mV)
Out of gamut tolerance
Whilst XR and the Broadcasters will reject illegal video levels, they understand there may be instances where it is difficult to completely avoid. Following EBU recommendation Rec.103-2000 they will therefore allow a small tolerance, assuming that no more than 1% of the active picture is in error.
Audio Levels
All South African Broadcasters require audio to be compliant with EBU R128 as below:
EBU R.128-2014
- Integrated Loudness Program : -23 LUFS
- Target Level Tolerance : +/- 0.9 LU
- Maximum True Peak : -2dBTP
- Maximum Short Term Momentary (3 Sec) : No Limitations
- Loudness Range : No Limitations
All other African destinations prefer R128 as above, but will still accept PPM Type II:
PPM / Max Peak
- Permitted Maximum Level : -10dBFS / 6PPM / +8dBU
- Alignment Level : -18dBFS
- Ballistic : PPM Type II
Audio Channel Configurations
| Channel # | Audio |
| 1 | Stereo Left |
| 2 | Stereo Right |
Subtitles
This region can only accept open/burnt in captions.
Audio Description
Audio Description isn't currently supported in this region.
Clearance
Broadcasters will check that commercials are legally compliant, no pre-approval required.
